PNE Series

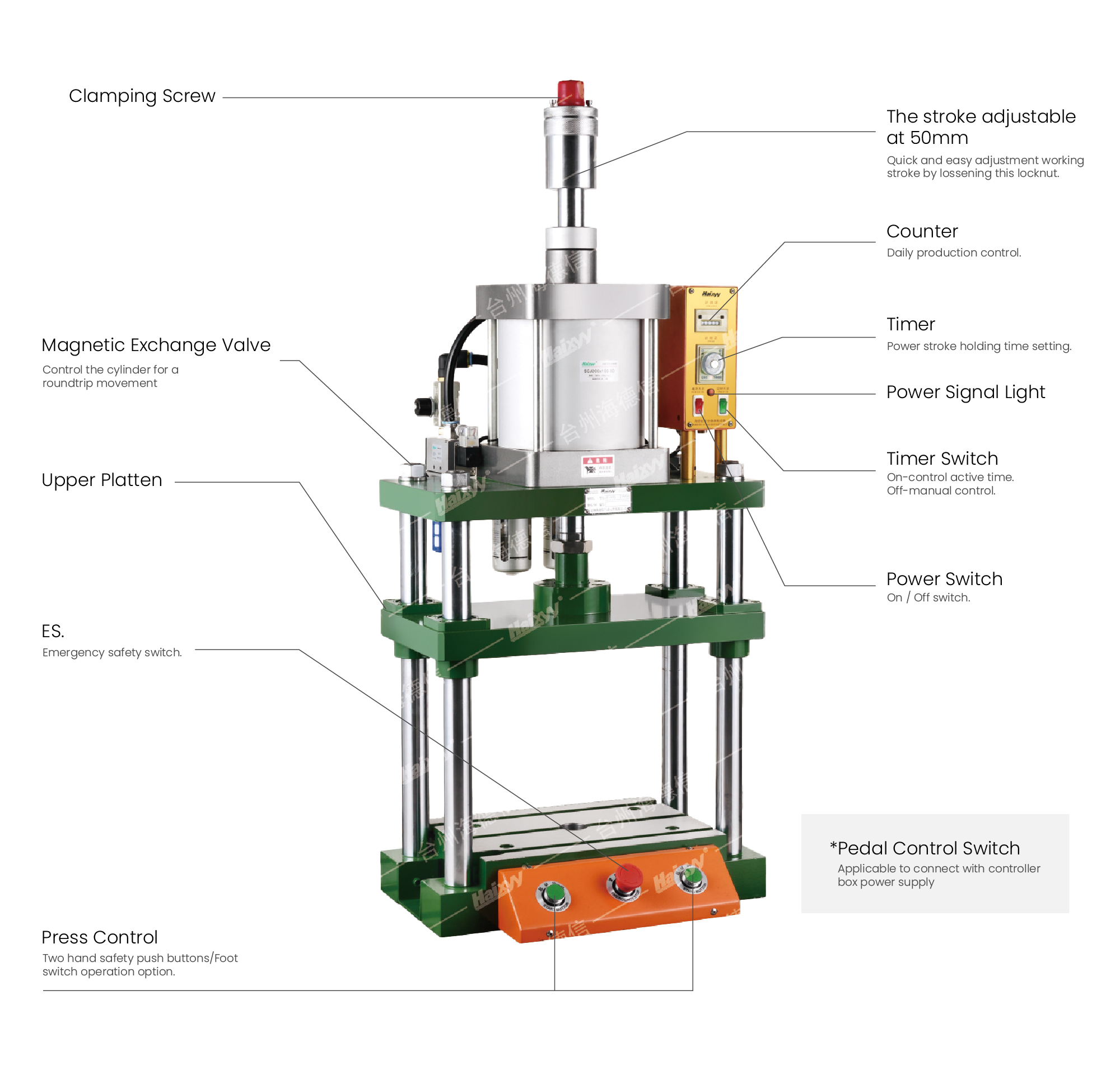

To fix the timing while the electric control circuit and barometric pressure is getting connected.
The buffer is attached to ensure a stable operation with the machine.
To start the machine by pushing the button by hand (or by foot switch).
1. Unfixed timing control (Timing system is not closed): To press down the two start buttons simultaneously and the principal axis is falling down, then it will rise to reposition while releasing the buttons.
2. Fixed timing control (Timing system is closed): To press down the two start buttons simultaneously and the principal axis is falling down. When it comes to the fixed time, the axis will rise to reposition.

CONTACT US

Parameters	PNE-1300	PNE-2000	PNE-2600	PNE-4000
Max Working Height (mm)	300	300	300	300
Cylinder Zspecifications (mm)	Φ160×100	Φ200×100	Φ160x100x100	Φ200x100x100
Cylinder Adjustable Stroke (mm)	50	50	50	50
Workbench Area (mm)	380×260	380×260	380×260	380×260
Power Supply AC, 50Hz	220V	220V	220V	220V
Weight (Kg)	195	200	205	215
Working Air Pressure (MPa)	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7
Use Pressure	Theory Output
0.4 MPa	753 Kg	1205 Kg	1506 Kg	2410 Kg
0.5 MPa	942 Kg	1507 Kg	1884 Kg	3014 Kg
0.6 MPa	1130 Kg	1808 Kg	2260 Kg	3616 Kg
0.7 MPa	1318 Kg	2110 Kg	2636 Kg	4220 Kg
