PNA Series

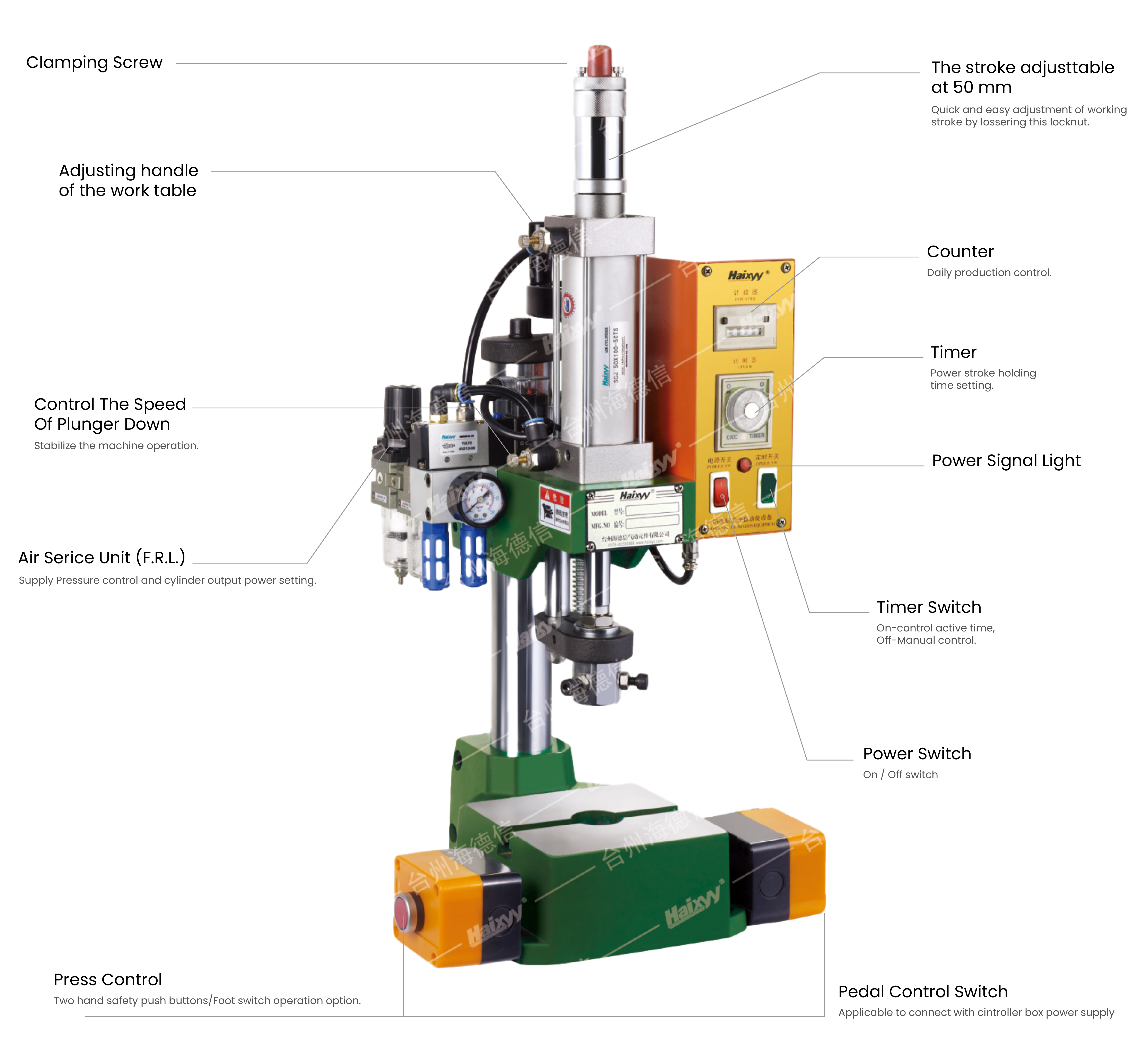

Take compressed air as power source, easy to operate.
The buffer is attached to ensure a stable operation with the machine.
To start the machine by pushing the button by hand (or by foot switch).
Multi-functional purposes are suitable for pressure into the bearings, punching, riveting, assembly, cutting, etc.
Adjustable stroke cylinders, special strokes can be customized. Column height can also be customized.
Output force is easily adjusted by adjusting air pressure. The required pressure can be obtained simply by adjusting air pressure.
Safety design, comfortable operation, human-based consideration suitable for long-term operation.
If there is a need for quick exhaust during operation, a quick exhaust valve is optional.

CONTACT US

Parameters	PNA-100	PNA-200	PNA-300	PNA-300A	PNA-500	PNA-800	PNA-800A	PNA-1300	PNA-1300A	PNA-2000	PNA-2600
Max Operating Pressure (mm)	270	270	250	350	350	350	400	400	460	450	450
Pressing Force (mm)	190	190	190	220	220	220	250	250	300	300	300
Cylinder Diameter (mm)	Φ50×100	Φ63×100	Φ80×100	Φ80×100	Φ100×100	Φ125×100	Φ125×100	Φ160×100	Φ160×100	Φ200×100	Φ160x100x100
Stroke Adjustable (mm)	50	50	50	50	50	50	50	50	50	50	50
Work Table Size (mm)	150×150	150×150	150×150	200×200	200×200	200×200	250×250	250×250	300×300	300×300	300×300
Power Supply	220V	220V	220V	220V	220V	220V	220V	220V	220V	220V	220V
Weight (Kg)	32	33	35	61	63	66	116	121	205	213	215
Air Pressure (MPa)	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7
Output Force at 0.4 MPa (Kg)	66	114	185	185	301	468	468	753	753	1204	1506
Output Force at 0.5 MPa (Kg)	82	143	231	231	376	585	585	942	942	1504	1884
Output Force at 0.6 MPa (Kg)	99	172	278	278	451	702	702	1130	1130	1804	2260
Output Force at 0.7 MPa (Kg)	115	200	324	324	526	819	819	1318	1318	2104	2636

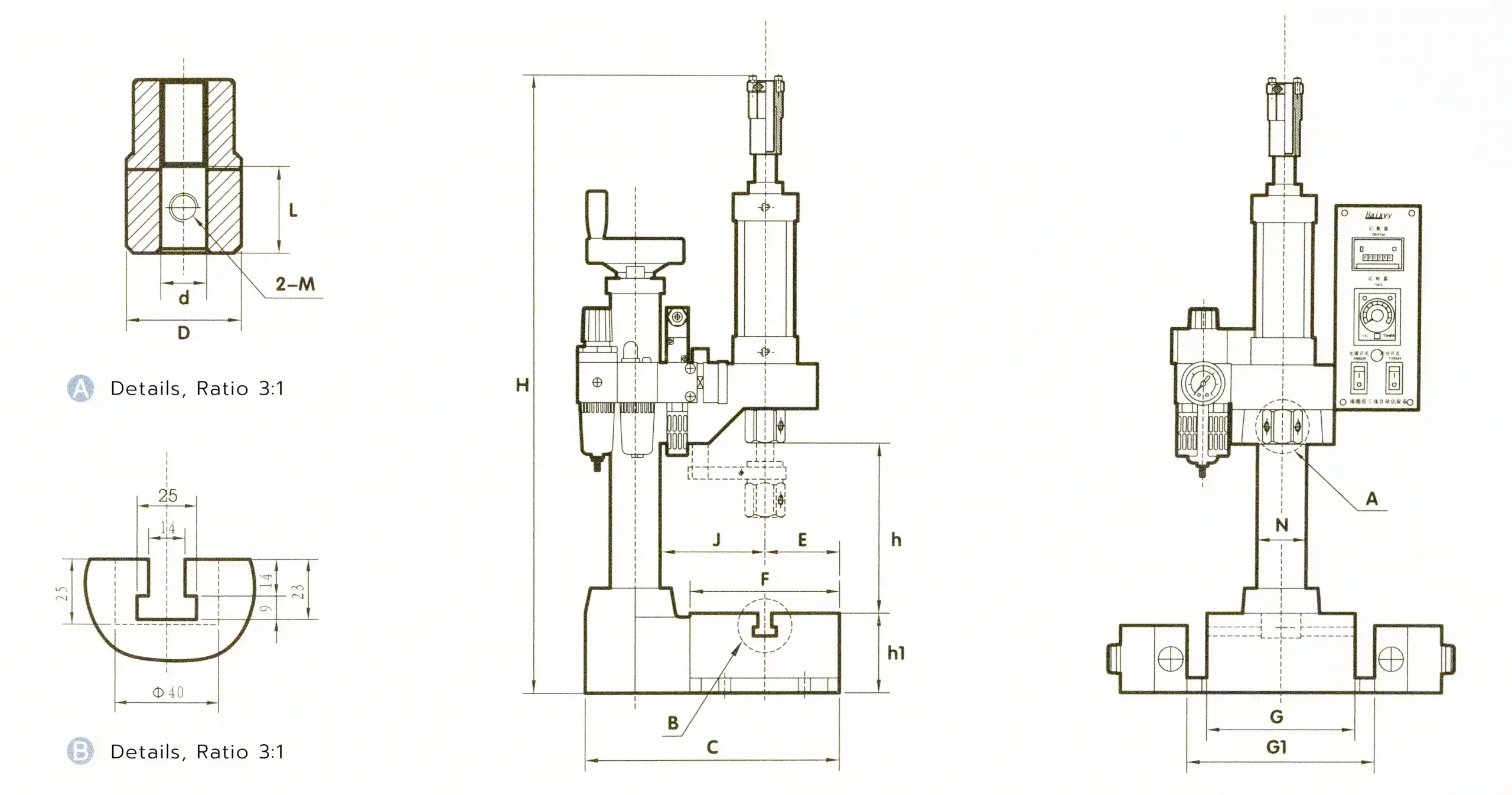

Model	C	D	d	E	F	G	G1	H	h	h1	J	L	M	N
PNA-100	260	Φ40	Φ16	75	150	150	190	860	270	80	105	30	M8	Φ50
PNA-200	260	Φ40	Φ16	75	150	150	190	870	260	80	105	30	M8	Φ60
PNA-300	260	Φ49	Φ16	75	150	150	190	890	250	80	105	30	M10	Φ70
PNA-300A	355	Φ45	Φ20	100	200	200	250	980	350	80	105	30	M10	Φ70
PNA-500	355	Φ45	Φ20	100	200	200	250	980	350	80	140	35	M10	Φ70
PNA-800	425	Φ50	Φ20	100	200	200	250	1100	350	80	140	35	M10	Φ70
PNA-800A	425	Φ53	Φ30	125	250	250	320	1100	400	110	170	40	M10	Φ80
PNA-1300	425	Φ53	Φ30	125	250	250	320	1150	400	110	170	40	M10	Φ90
PNA-1300A	500	Φ53	Φ30	150	300	300	370	1250	450	120	200	45	M10	Φ110
PNA-2000	500	Φ53	Φ30	150	300	300	370	1350	450	120	200	45	M10	Φ110
PNA-2600	500	Φ53	Φ30	150	300	300	370	1450	450	120	200	45	M10	Φ110
