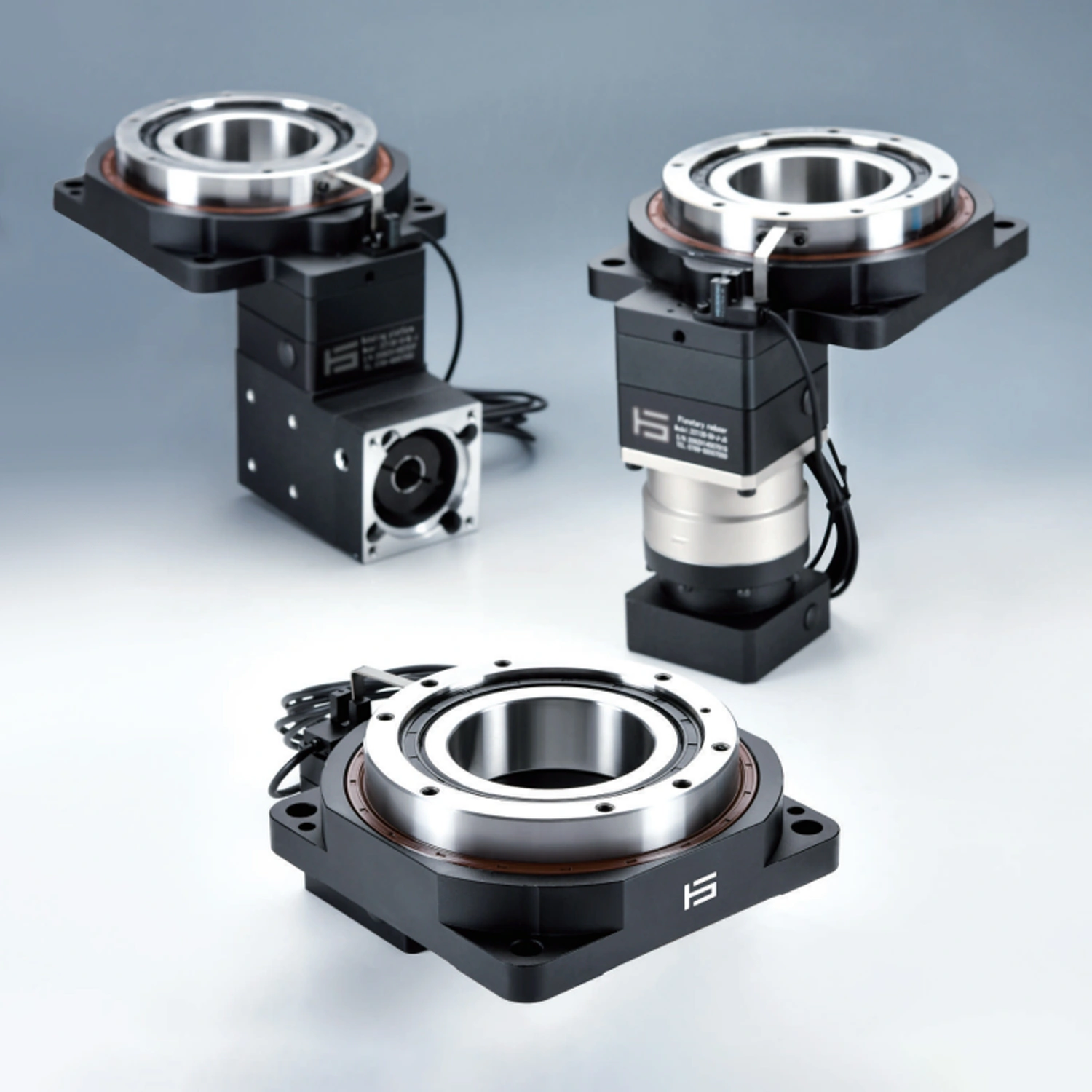

he rotating disk of the HRT series hollow rotating platform can directly lock the workpiece. The rotating platform adopts a hollow design, which is very convenient for wiring and piping. The positioning accuracy is ≤3arcmin, and the bearing structure is a cross roller bearing. The disk operates smoothly and quickly, and can be used with a closed-loop stepper or servo motor.
Heavy duty rotary tables are rugged equipment designed specifically for machining heavy workpieces and are able to withstand high loads and strength requirements during machining. They are often used in industrial environments, especially where large and heavy parts need to be precisely machined.
The output platform can be directly installed on the workbench or mechanical arm of the equipment. Compared with the use of mechanical parts such as pulleys, the hollow rotating platform can reduce the time and cost of mechanical design, parts allocation, belt state adjustment and other links.
The large-diameter hollow hole output can be used on the surrounding complex wiring and piping. The wiring and piping are more convenient and simple, which can simplify the equipment design.
In addition to horizontal installation, the rotating platform can also be installed vertically or upside down, and the range of device design is wide.
It can be easily configured with the motor, with stable load, and can be divided at any angle with servo motor or stepper motor, which can meet the digital control that the divider cannot achieve, and the positioning accuracy is comparable to that of direct drive motor. It combines high efficiency, high precision, high rigidity and high cost performance.
The following are the specific parameters of some models of heavy duty rotary table. If you need detailed information about this or other models, please contact our sales staff.
The above data is for reference only. Based on the data provided by the customer, relevant technical parameters and dimensions will be provided

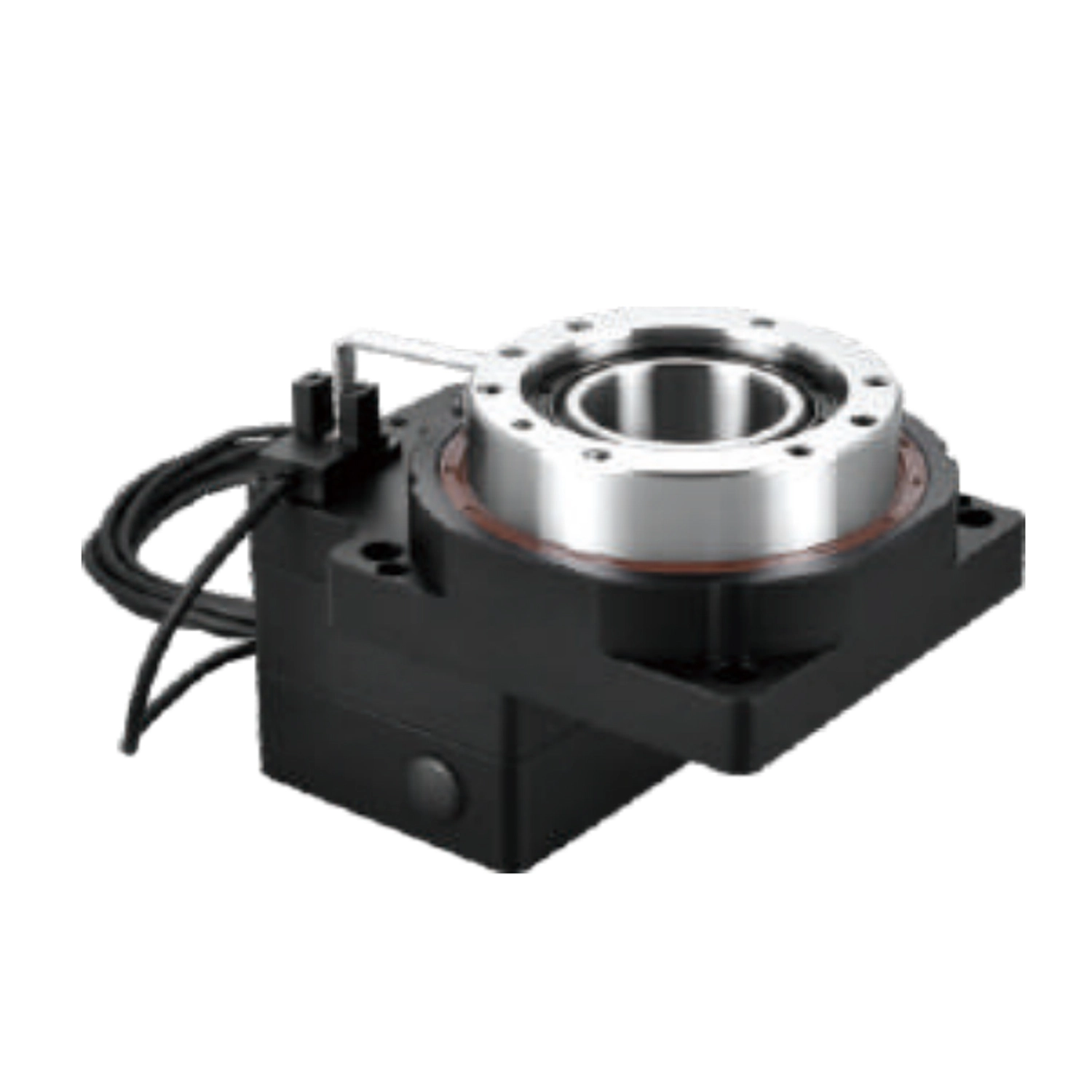

The speed ratio of HRT85JS series is 15/20/25/35/50 etc. The rated output torque is 40N.m.

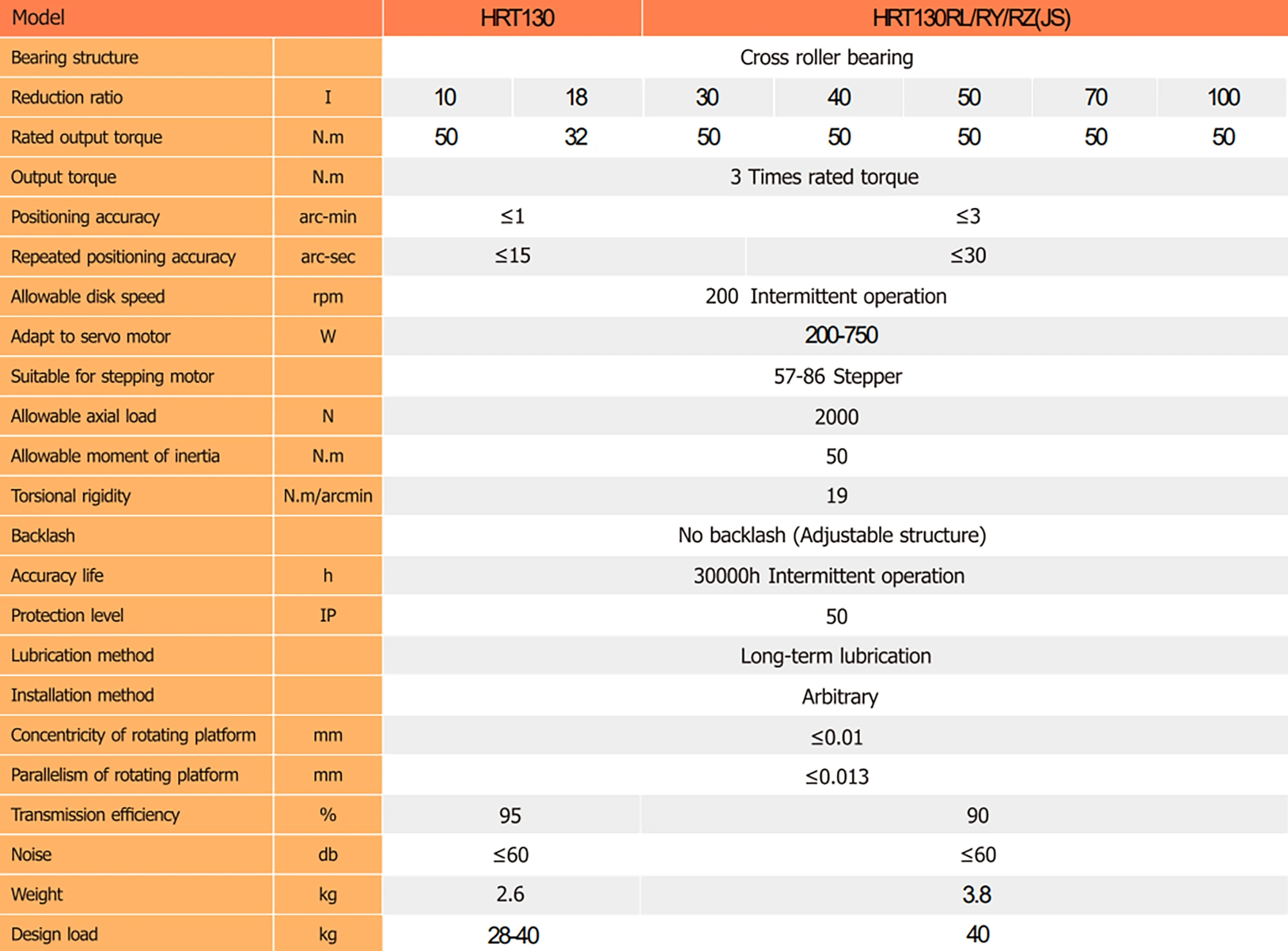

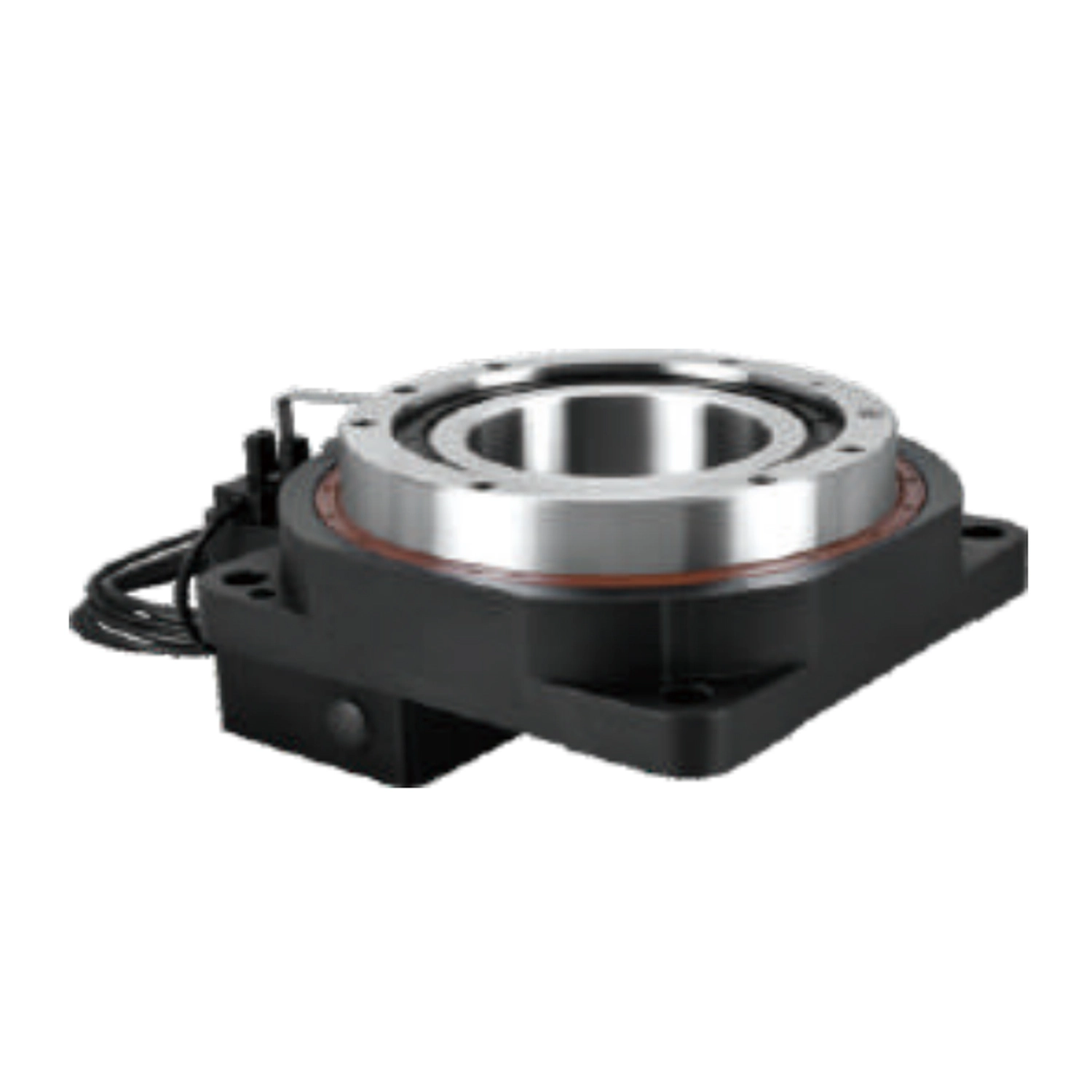

HRT 130 S series speed ratio has 30/40/50/70/100 etc. The rated output torque is 65N.m. 2 If the parallelism of the rotating platform has higher requirements, please contact our sales staff

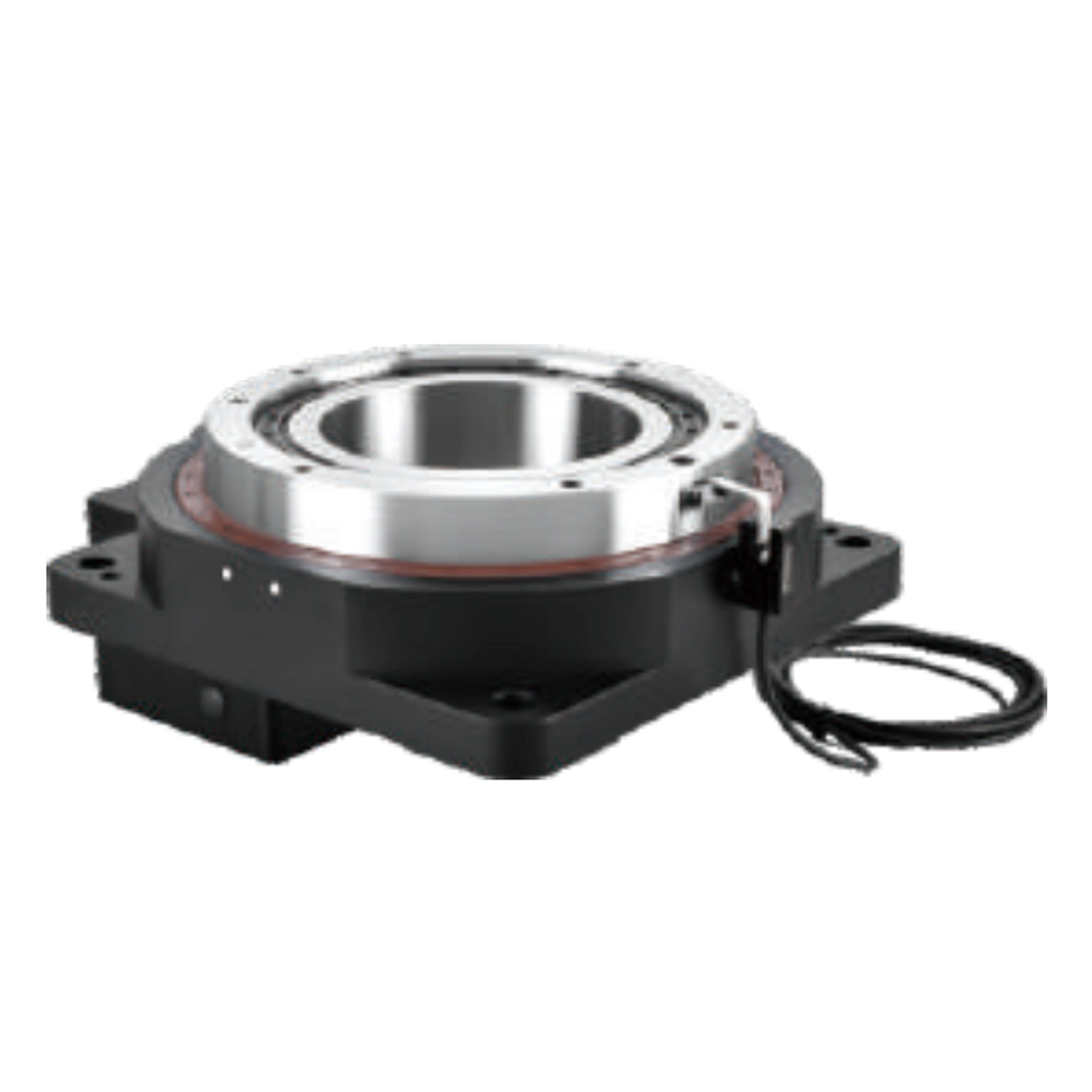

HRT200JS series speed ratio has 30/40/50/70/100 etc. The rated output torque is 110N.m. 2 the parallelism of the rotating platform has higher requirements, please contact our sales staff
If the parallelism of the rotating platform has higher requirements, please contact oour sales staff
Suitable for high-torque applications with stable performance.
Known for precise control but typically used in lighter-duty applications.
Sometimes used as cost-effective alternatives where extremely high precision isn’t required but still allows for repeatable positioning.
