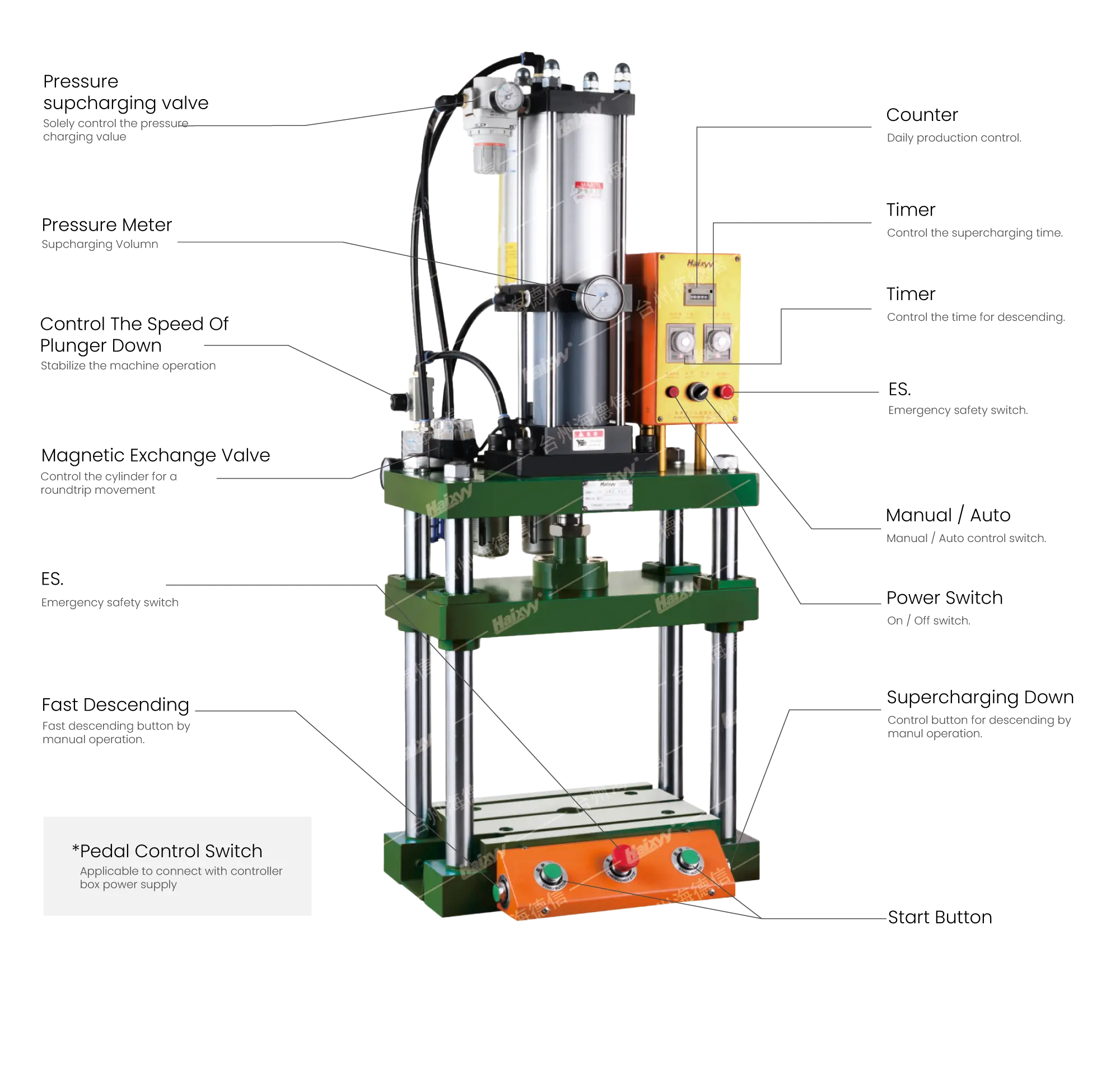

HAE Series

  • The electric and air supply is on, and the machine is in ready mode. Set up the timing for rapid descending and pressurizer descending time.
  • To position the switch to manual drive, then press down the rapid descending button so the principal axis is falling down quickly. Press down the pressurizer button to reduce its pressure, then release the button and the principal axis rises to reposition.
  • To push the operation on the automatic switch: Press down the two automatic buttons simultaneously and then release. The principal axis begins to get down rapidly, and when it starts to pressurize, it returns when the time for supercharging is up.
  • If any emergency occurs, please press down the jerk button to reposition the principal axis and stop the machine.

CONTACT US

Tecnical Parameter

Parameters
HAE-3T
HAE-5T
HAE-8T
HAE-10T
HAE-13T
HAE-20T
Max Working Height (mm)300300300300300300
Booster Cyclinder SizeCPT-63-150-15CPT-80-150-15CPT-80-150-15CPT-100-150-15CPT-100-150-15CPT-125-150-15
Total Stroke150150150150150150
Rapid Stroke135135135135135135
Supercharging Stroke151515151515
Time of Back and Forth Per Minuteapprox 30/minapprox 30/minapprox 30/minapprox 20/minapprox 20/minapprox 15/min
Area of Working Bench380×260380×260380×260380×260380×260430×300
Power220V220V220V220V220V220V
Weight (KG)192197200231236441
Operating PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn Pressure
0.3 Mpa1500 Kg130 Kg10 Kg3000 Kg190 Kg70 Kg3700 Kg190 Kg70 Kg4680 Kg274 Kg130 Kg5910 Kg274 Kg130 Kg10500 Kg440 Kg160 Kg
0.4 Mpa2000 Kg160 Kg30 Kg4000 Kg240 Kg110 Kg5020 Kg240 Kg110 Kg6420 Kg352 Kg190 Kg7880 Kg352 Kg190 Kg14000 Kg560 Kg270 Kg
0.5 Mpa2500 Kg190 Kg50 Kg5000 Kg290 Kg150 Kg6280 Kg290 Kg150 Kg7800 Kg420 Kg250 Kg9850 Kg420 Kg250 Kg17500 Kg680 Kg360 Kg
0.6 Mpa3000 Kg220 Kg70 Kg6000 Kg340 Kg190 Kg7530 Kg340 Kg190 Kg9360 Kg518 Kg310 Kg11820 Kg518 Kg310 Kg21000 Kg800 Kg450 Kg
0.7 Mpa3500 Kg250 Kg90 Kg7000 Kg390 Kg230 Kg8790 Kg390 Kg230 Kg10920 Kg586 Kg370 Kg13090 Kg586 Kg370 Kg24500 Kg920 Kg540 Kg

Physical Dimensions

Model
B
B1
C
C1
C2
h1
G
G1
H
H1
h
L
L1
W
W1

HAE-3T2802004502601801005004201150600300380500260260
HAE-5T2802004502601801005004201200600300380500260260
HAE-8T2802004502601801005004201270600300380500260260

Model
B
B1
C
C1
C2
E
h1
G
G1
H
H1
h
L
L1
W
W1
HAE-10T280200450260180901005004201270610300380500260260
HAE-13T280200450260180901005004201320610300380500260260
HAE-20T3202004502601801001006004901420680300430600300300

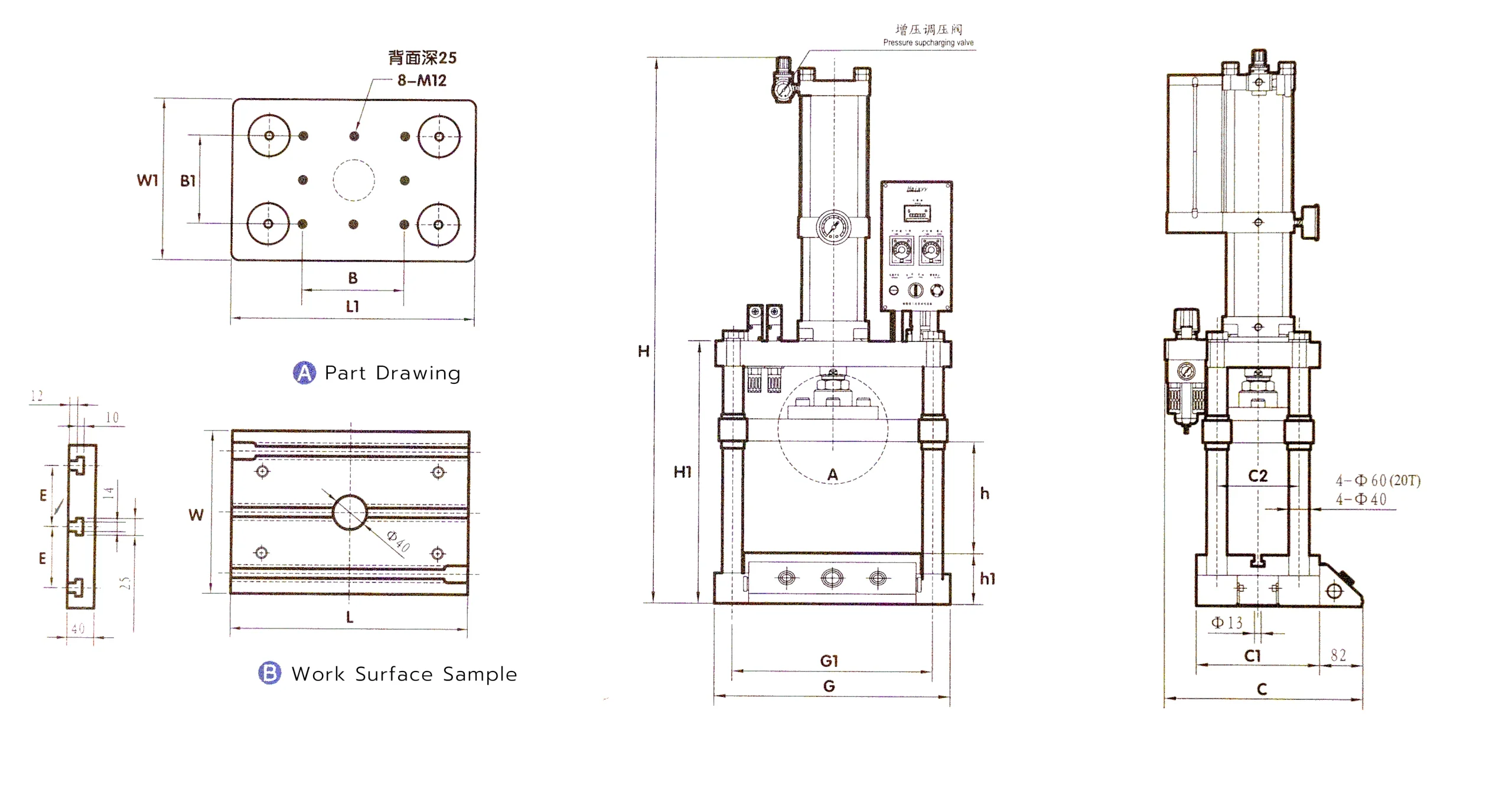

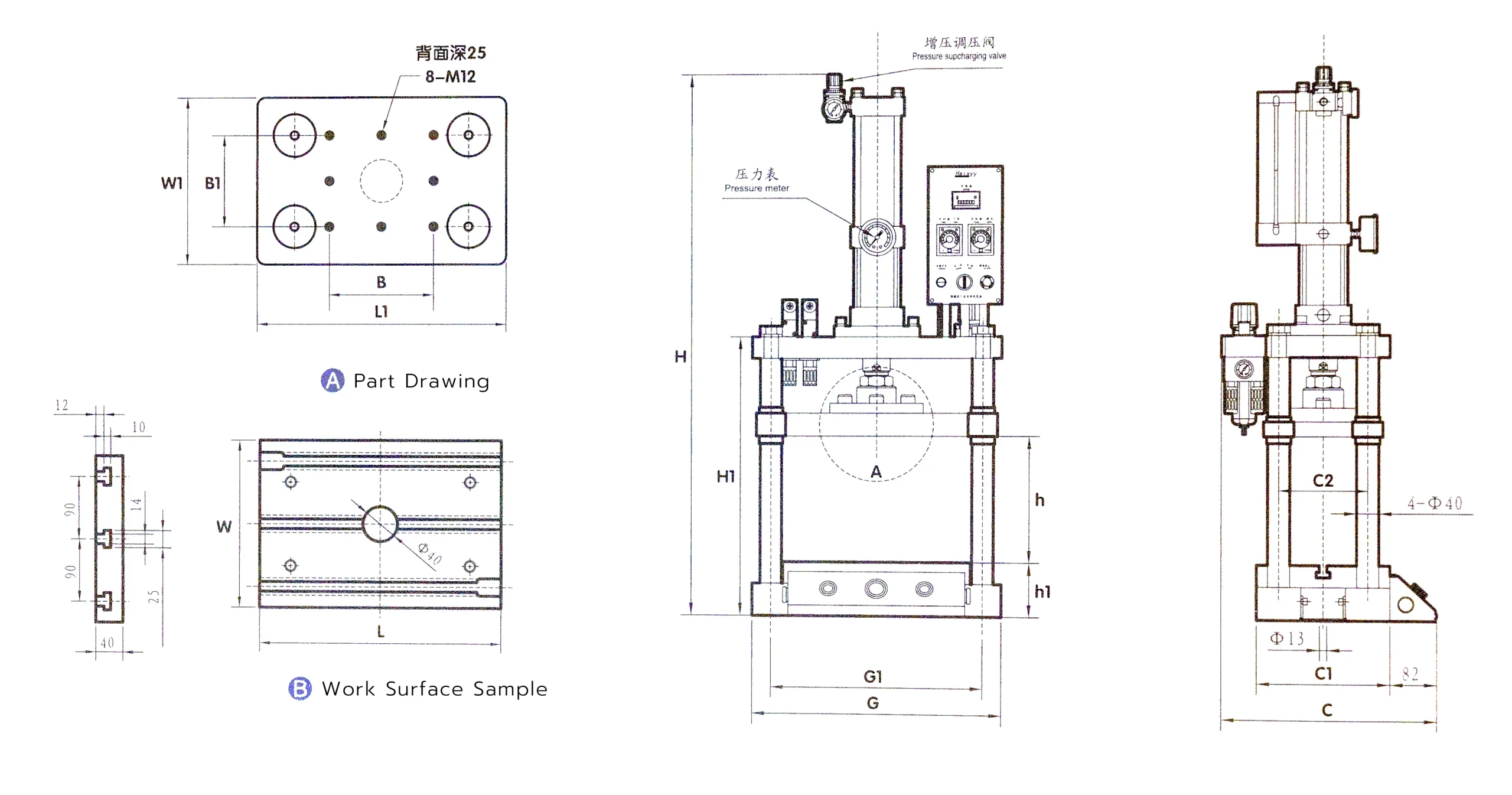

Drawing on physical dimensions
