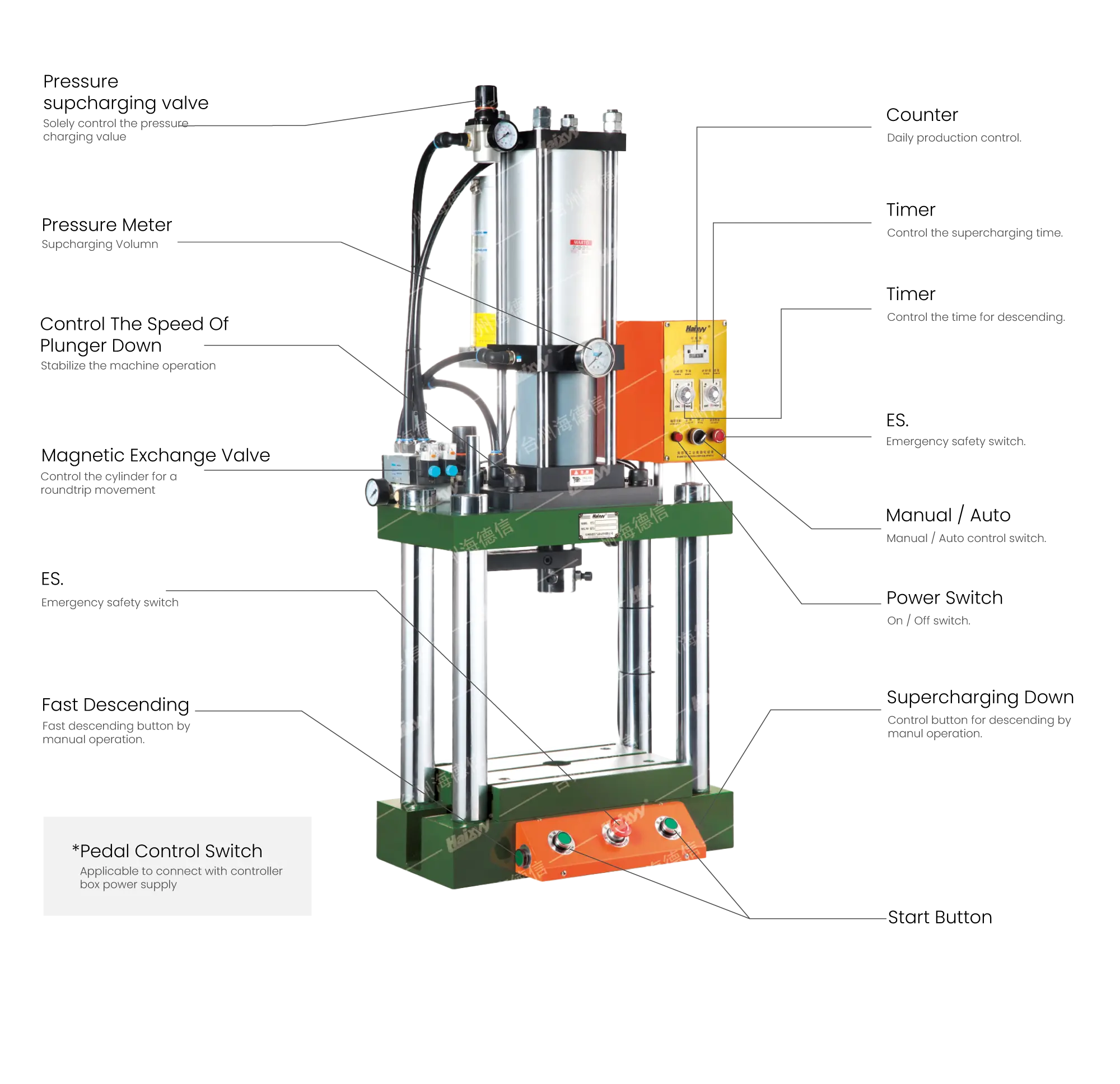

HAD Series

  • The electric and air supply is on, and the machine is in ready mode. Set up the timing for rapid descending and pressurizer descending time.
  • To position the switch to manual drive, then press down the rapid descending button so the principal axis is falling down quickly. Press down the pressurizer button to reduce its pressure, then release the button and the principal axis rises to reposition.
  • To push the operation on the automatic switch: Press down the two automatic buttons simultaneously and then release. The principal axis begins to get down rapidly, and when it starts to pressurize, it returns when the time for supercharging is up.
  • If any emergency occurs, please press down the jerk button to reposition the principal axis and stop the machine.

CONTACT US

Tecnical Parameter

Parameters
HAD-1.5T
HAD-3T
HAD-5T
HAD-8T
HAD-10T
HAD-13T
HAD-15T
HAD-20T
HAD-30T
HAD-40T
Max Working Height (mm)300300300300300300300300300300
Booster Cyclinder SizeCPT-63-150-15CPT-63-150-15CPT-80-150-15CPT-80-150-15CPT-100-150-15CPT-100-150-15CPT-125-150-15CPT-125-150-15CPT-150-150-15CPT-150-150-15
Total Stroke150150150150150150150150150150
Rapid Stroke135135135135135135135135135135
Supercharging Stroke15151515151515151515
Time of Back and Forth Per Minuteapprox 35/minapprox 30/minapprox 30/minapprox 30/minapprox 20/minapprox 20/minapprox 15/minapprox 15/minapprox 10/minapprox 10/min
Area of Working Bench360×240360×240360×240360×240360×240360×260420×280420×280450×320450×320
Power220V220V220V220V220V220V220V220V220V220V
Weight (KG)130135140155165173310320355375
Operating PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn PressureSuper Charging PressurePre-Pressure PressureReturn Pressure
0.3 Mpa900 Kg90 Kg60 Kg1500 Kg90 Kg60 Kg3000 Kg150 Kg120 Kg3700 Kg150 Kg120 Kg4680 Kg234 Kg180 Kg5910 Kg234 Kg180 Kg7680 Kg360 Kg270 Kg10500 Kg360 Kg270 Kg17300 Kg530 Kg400 Kg23500 Kg530 Kg330 Kg
0.4 Mpa1250 Kg120 Kg80 Kg2000 Kg120 Kg80 Kg4000 Kg200 Kg160 Kg5020 Kg200 Kg160 Kg6240 Kg312 Kg240 Kg7880 Kg312 Kg240 Kg10240 Kg480 Kg360 Kg14000 Kg480 Kg360 Kg23000 Kg700 Kg550 Kg31000 Kg700 Kg450 Kg
0.5 Mpa1550 Kg150 Kg100 Kg2500 Kg150 Kg100 Kg5000 Kg250 Kg200 Kg6280 Kg250 Kg200 Kg7800 Kg390 Kg300 Kg9850 Kg390 Kg300 Kg12800 Kg600 Kg450 Kg17500 Kg600 Kg450 Kg28800 Kg880 Kg690 Kg39300 Kg880 Kg560 Kg
0.6 Mpa1850 Kg180 Kg120 Kg3000 Kg180 Kg120 Kg6000 Kg300 Kg240 Kg7530 Kg300 Kg240 Kg9360 Kg468 Kg360 Kg11820 Kg468 Kg360 Kg15350 Kg720 Kg540 Kg21000 Kg720 Kg540 Kg34500 Kg1000 Kg800 Kg47000 Kg1000 Kg670 Kg
0.7 Mpa2150 Kg210 Kg140 Kg3500 Kg210 Kg120 Kg7000 Kg350 Kg280 Kg8790 Kg350 Kg280 Kg10920 Kg546 Kg420 Kg13790 Kg546 Kg420 Kg17900 Kg840 Kg630 Kg24500 Kg840 Kg630 Kg40000 Kg1200 Kg950 Kg55000 Kg1200 Kg780 Kg

Physical Dimensions

Model
C
C1
C2
D
d
L1
G
G1
H
h
h1
L
W
HAD-1.5T450240160Φ53Φ30454804001130300100360240
HAD-3T450240160Φ53Φ30454804001150300100360240
HAD-5T450240160Φ53Φ30454804001170300100360240
HAD-8T450240160Φ53Φ30454804001150300100360240
HAD-10T450240160Φ53Φ30454804001170300100360240
HAD-13T450240160Φ53Φ30454804001200300100360240
HAD-15T480280180Φ75Φ40555804801300300150420280
HAD-20T480280180Φ75Φ40555804801350300150420280
HAD-30T530320210100Φ50606305201550300160450320
HAD-40T530320210100Φ50606305201650300160450320

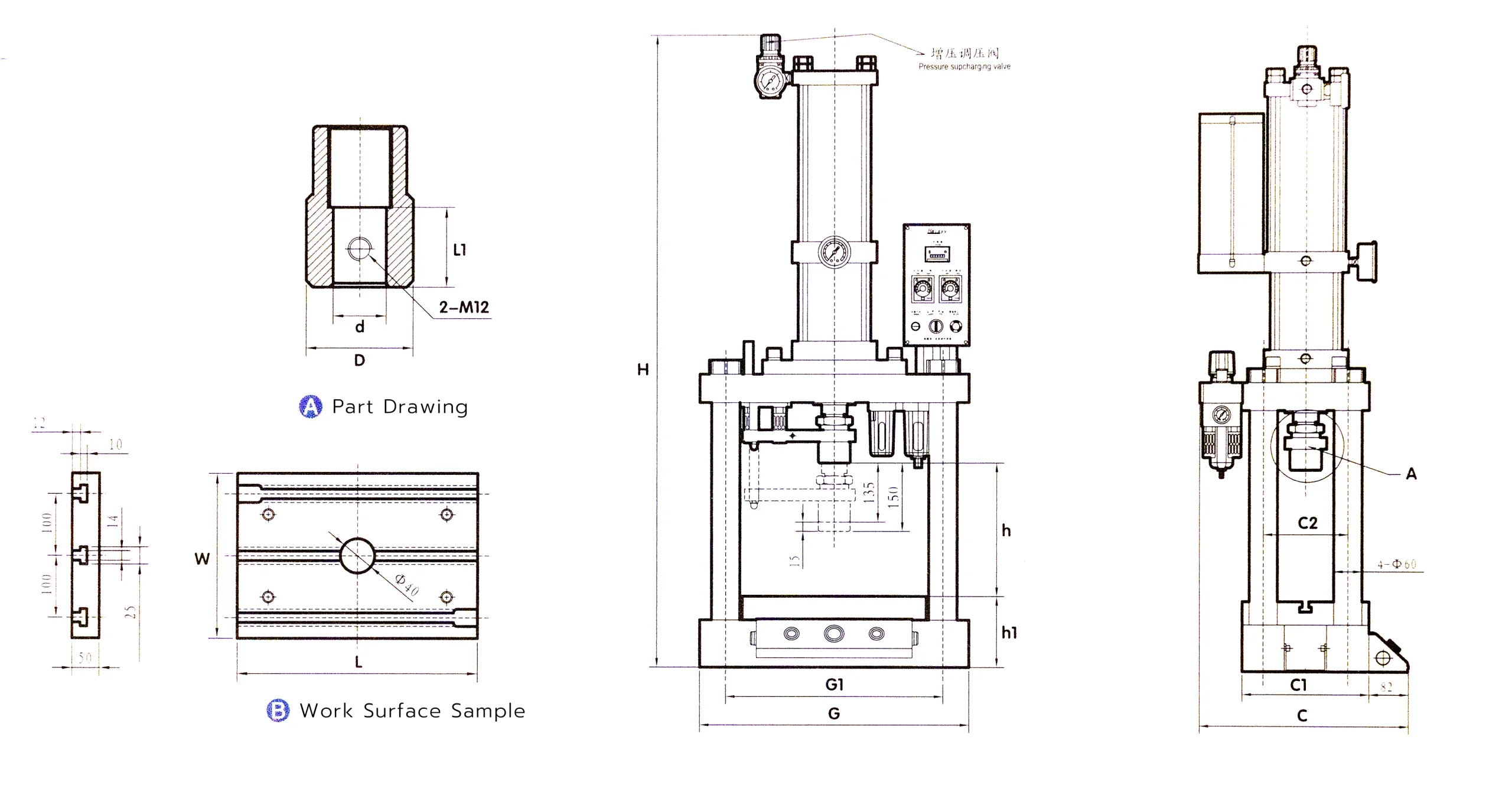

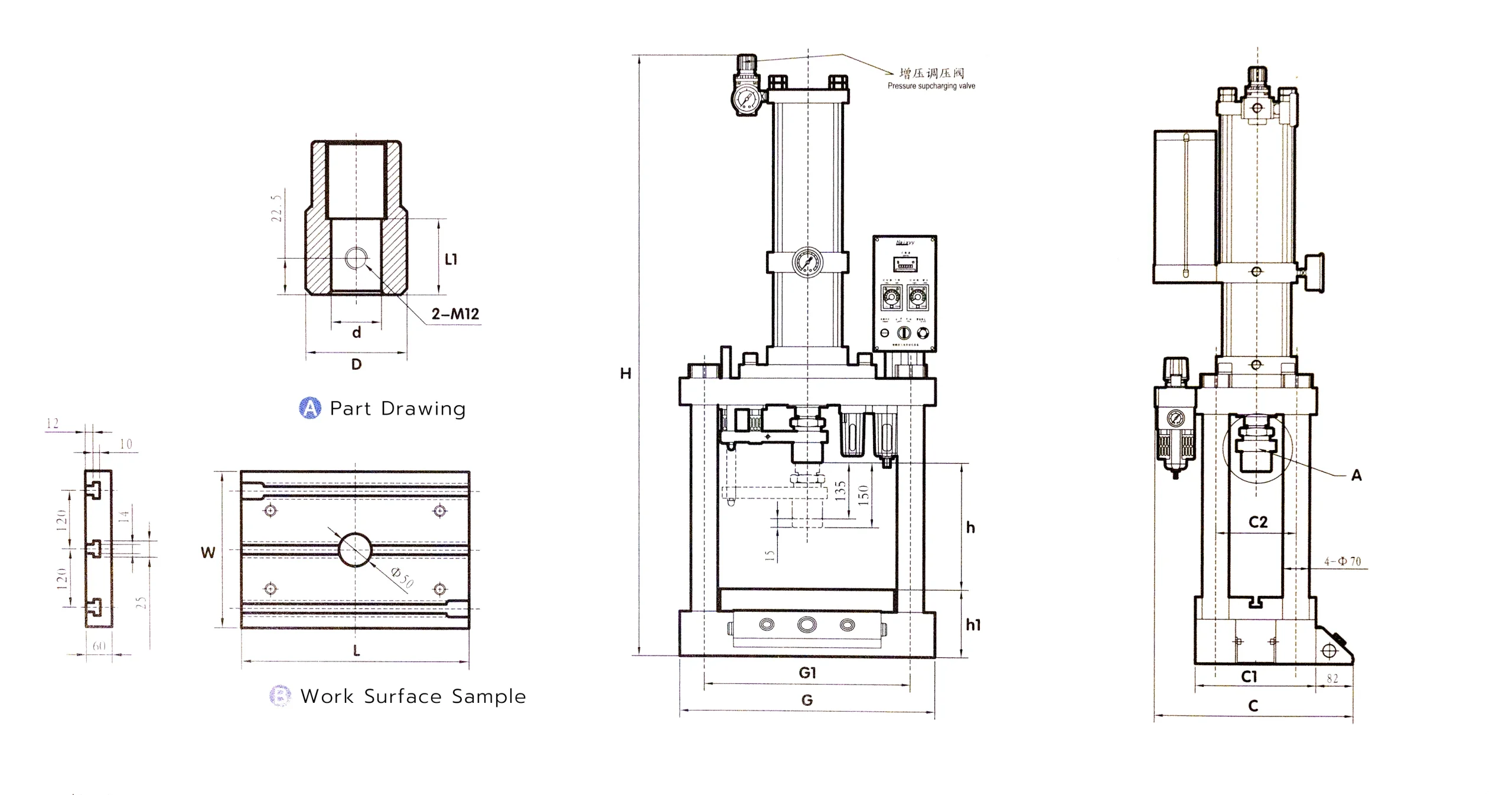

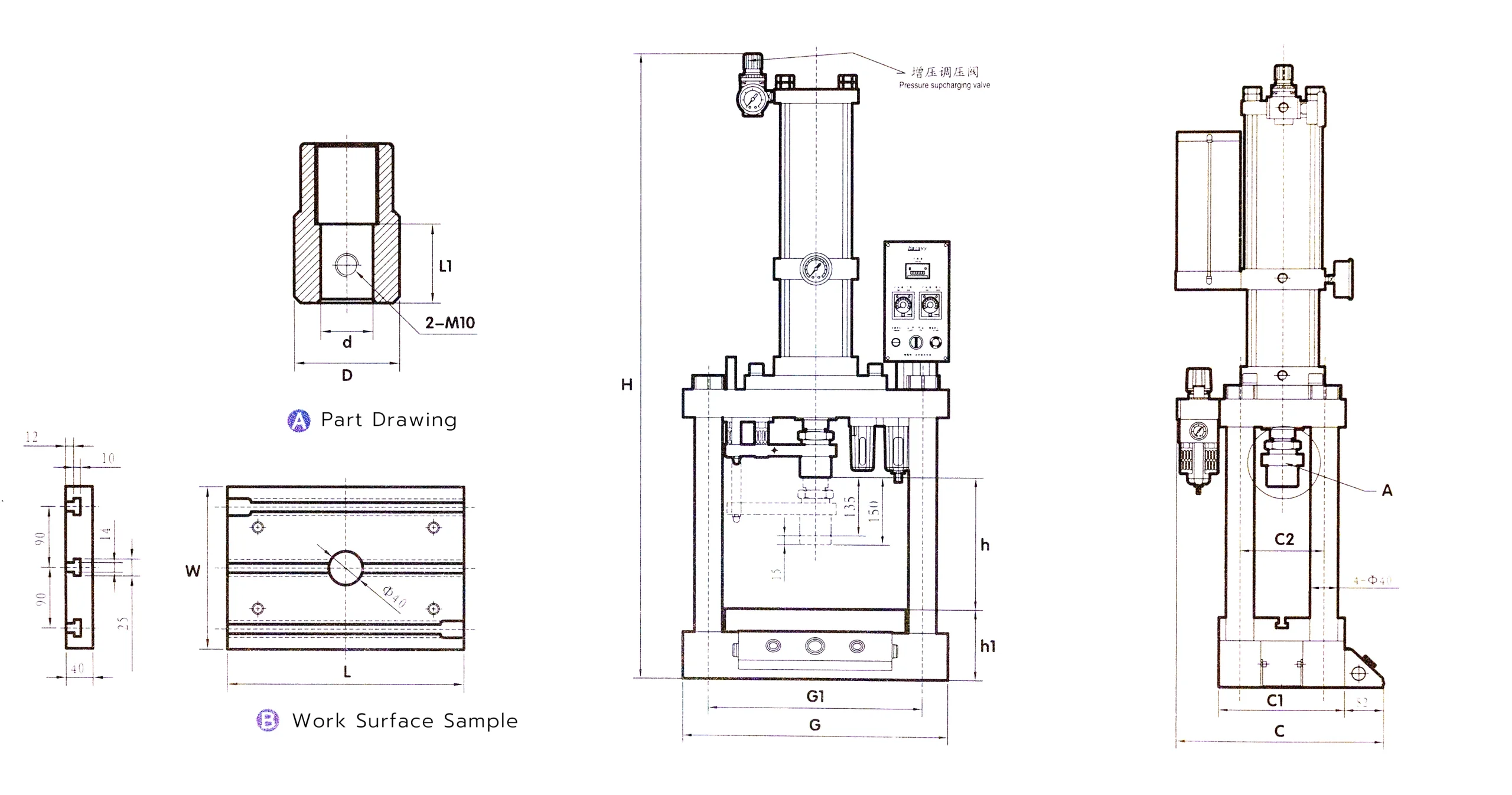

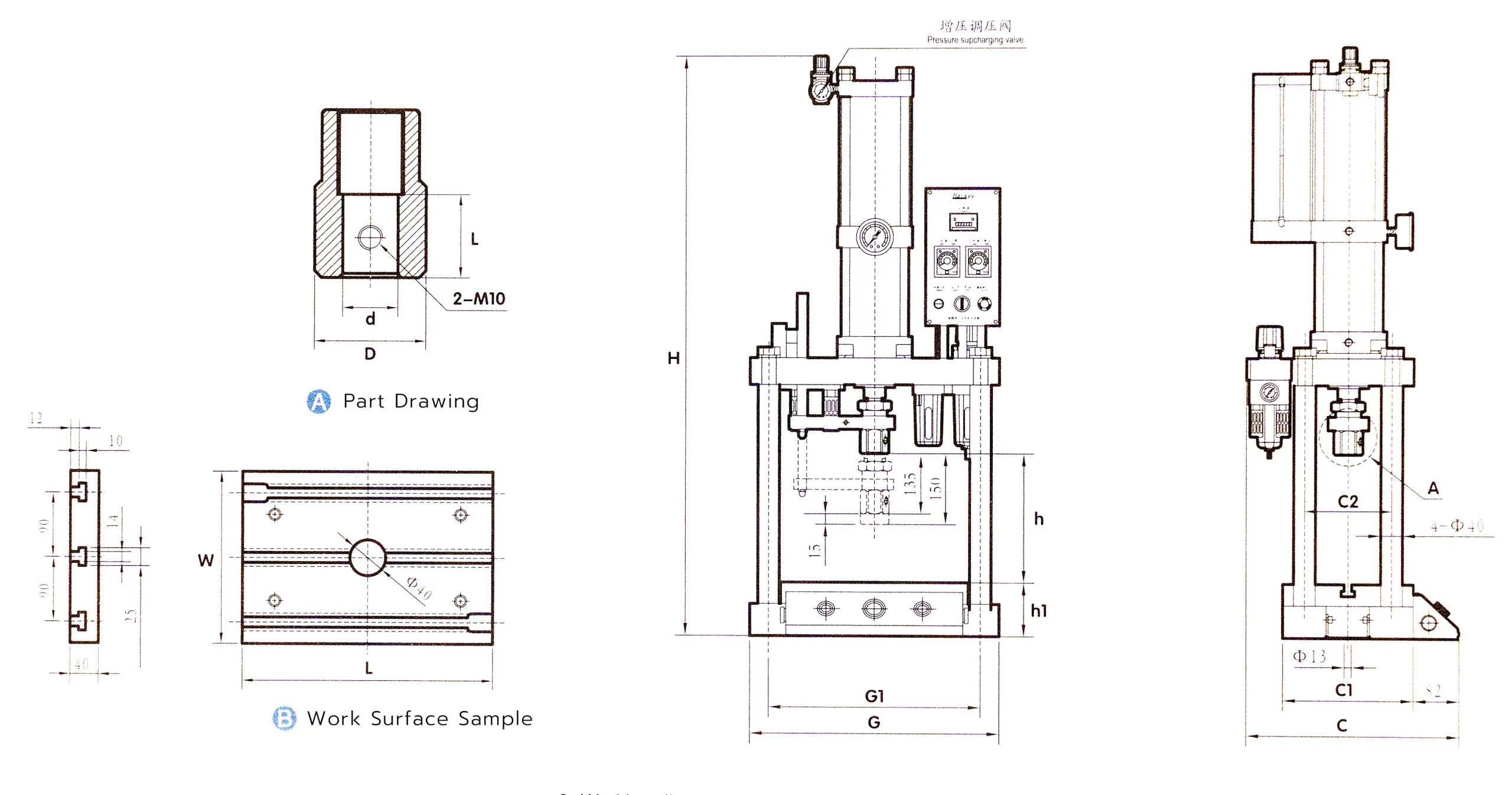

Drawing on physical dimensions
