HAB Series

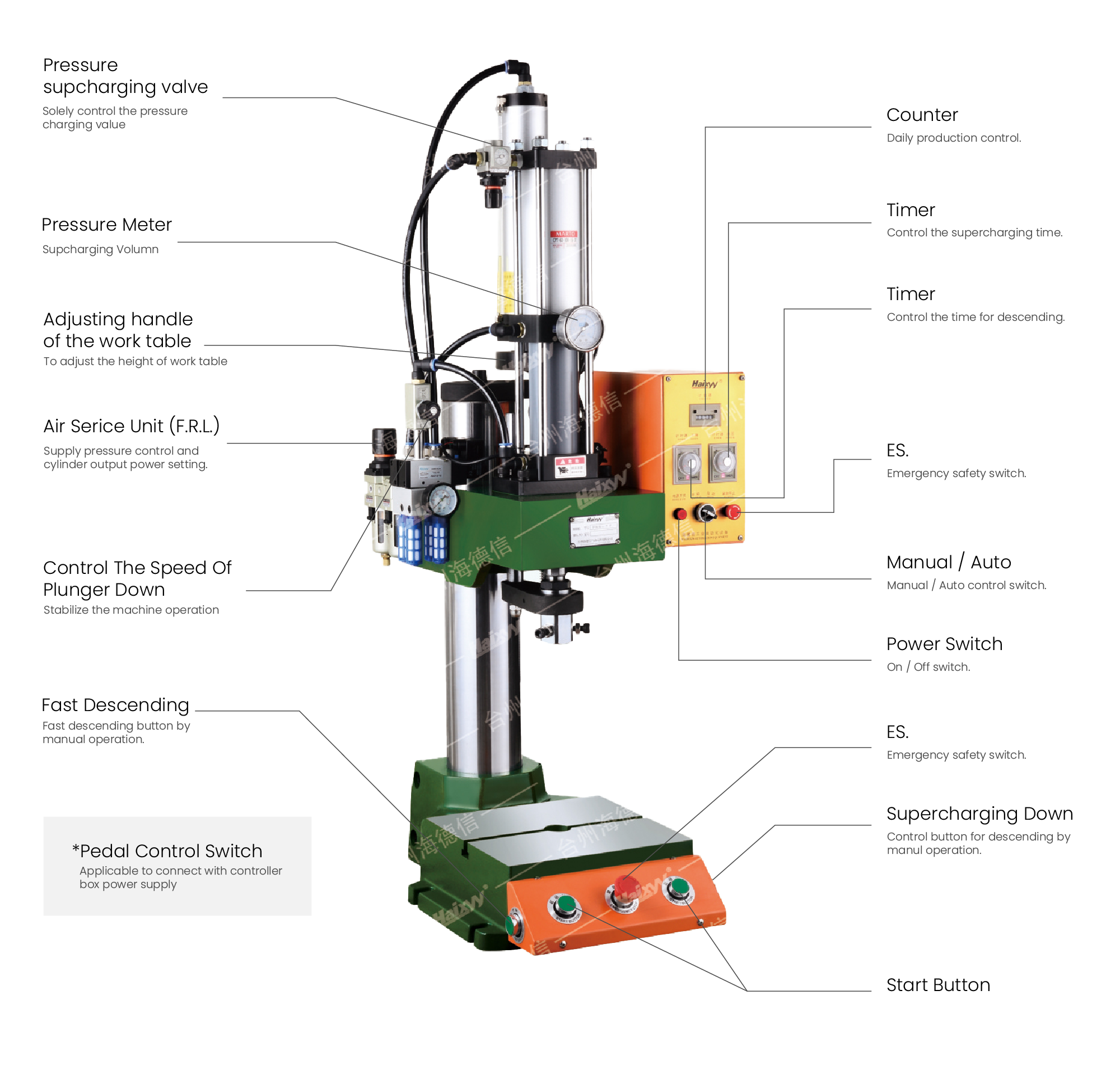

The electric and air supply is on, and the machine is in ready mode. Set up the timing for rapid descending and pressurizer descending time.
To position the switch to manual drive, then press down the rapid descending button so the principal axis is falling down quickly. Press down the pressurizer button to reduce its pressure, then release the button and the principal axis rises to reposition.
To push the operation on the automatic switch: Press down the two automatic buttons simultaneously and then release. The principal axis begins to get down rapidly, and when it starts to pressurize, it returns when the time for supercharging is up.
If any emergency occurs, please press down the jerk button to reposition the principal axis and stop the machine.

CONTACT US

Tecnical Parameter

Parameters	HAB-1.5T			HAB-3T
Max Working Height (mm)	450			450
Booster Cyclinder Size	CPT-63-150-15			CPT-63-150-15
Total Stroke	150			150
Rapid Stroke	135			135
Supercharging Stroke	15			15
Time of Back and Forth Per Minute	approx 35/min			approx 35/min
Area of Working Bench	300×300			300×300
Power	220V			220V
Weight (KG)	205			212
Operating Pressure	Super Charging Pressure	Pre-Pressure Pressure	Return Pressure	Super Charging Pressure	Pre-Pressure Pressure	Return Pressure
0.3 Mpa	900 Kg	90 Kg	60 Kg	1500 Kg	90 Kg	60 Kg
0.4 Mpa	1250 Kg	120 Kg	80 Kg	2000 Kg	120 Kg	80 Kg
0.5 Mpa	1550 Kg	150 Kg	100 Kg	2500 Kg	150 Kg	100 Kg
0.6 Mpa	1850 Kg	180 Kg	120 Kg	3000 Kg	180 Kg	120 Kg
0.7 Mpa	2150 Kg	210 Kg	140 Kg	3500 Kg	210 Kg	120 Kg
